S2 Traditional Industrial Roll-A-Door

The Roll-A-Door Series 2 Light Industrial rolling door has long been the ideal choice for industrial and commercial applications. It features a higher standard of durability, performance and operational ease.

Features

Smooth, Quiet Operation
High Wind Rated Roller Door
Precision Springing
Consistent Balance
Bottom Weatherseal
Wide range of colours
Economical

Curtain 0.50mm Gauge Flexible Steel Curtain

S2 Light Industrial Firmadoor

Curtain 0.40mm Gauge Flexible Steel Curtain

features

• All doors tailor made to suit your application.

• Lightweight door for easy operation.

• Fitted with weatherseal to prevent penetration of moisture and dust.

• Uses Nylofelt® cushioned operation providing smooth, quiet performance.

• Available in a range of COLORBOND® and Zincalume® colour options for compatibility with all modern cladding materials.

• Waist high locking for ease of operation.

• Adaptable for your application with mullions and ventilated curtains all available on request.

• Continuous brake pressed steel curtain providing superior aesthetics.

Warranty

1 Year

Windlocks

Opening Width for Windlocked doors:

The door should be at least 180mm wider than the opening if securing the guides to timber or masonry or 100mm wider than the opening if fixed to steel. That is, the door should overlap each side by 90mm or 50mm, depending on the structure.

Doors are ordered as curtain width, so please ensure you have added enough overlap with windlock doors.

Side room for Windlocked doors:

A minimum of 226mm side room on chain wheel end and 175mm for tail end is required for steel fixing and 262mm and 210mm respective for fixing to masonry.

Installation

Install doors behind opening, attached to brickwork or steelwork as required. Leave sufficient return on both sides to accommodate support brackets and guides with the necessary working clearances.

Posts and piers should continue past the lintel height to provide fixing for the support brackets. Series B doors are supported on brackets above the opening on each end and require sufficient headroom for door to roll up. Values in the tables indicate the minimum space required. If there is insufficient headroom at the site, the bottom of the curtain roll may infringe the opening.

Top mounting face of the wall bracket should be set to table dimensions. If more than 40mm above track top, bend sharp track top away at wall side to avoid possible damage to the nylon braiding.

BND Industrial Collection

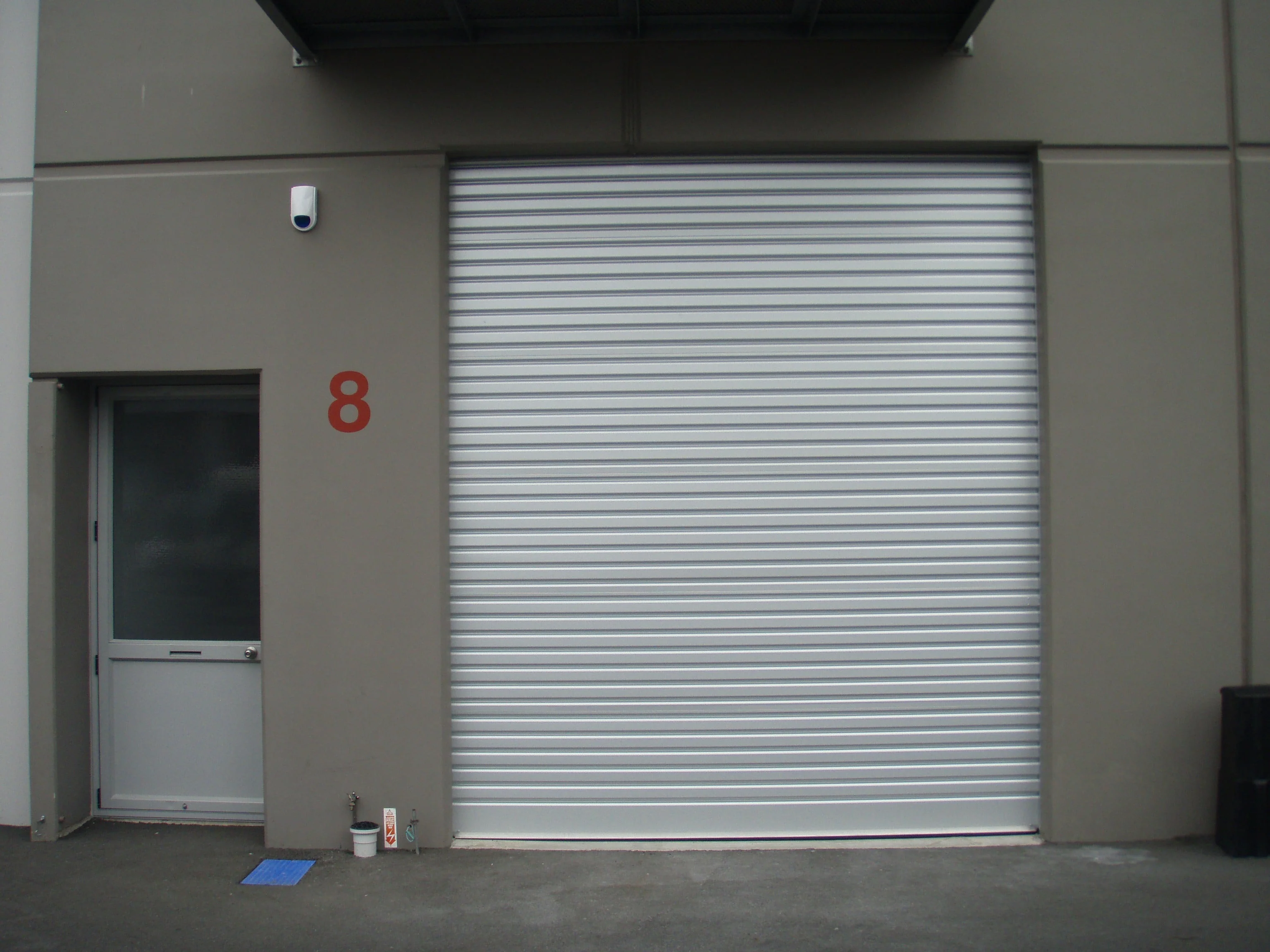

Semi-Commercial B&D Roller Door 5100mm High
